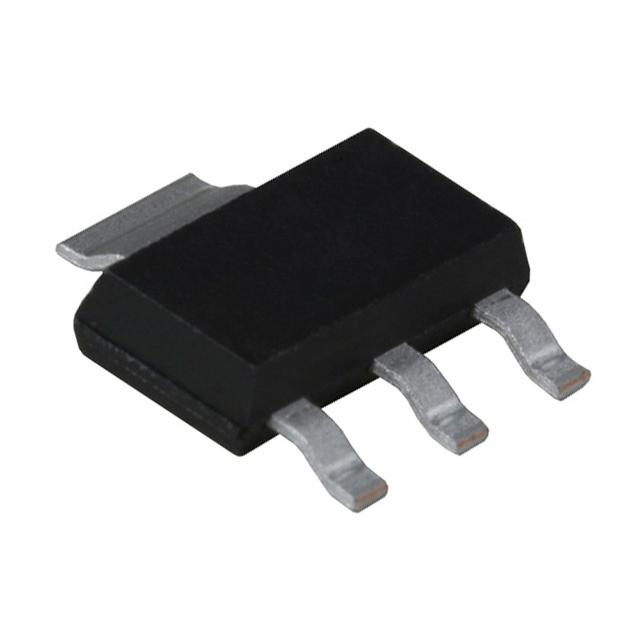

The LTP829 is low noise, LDO Voltage Regulators with enable function that output voltages of 3.3 V, 5 V. These characteristics, combined with low noise and good PSRR with low dropout voltage, make this device ideal for portable consumer applications. The LTP829 can operate with up to 20 V input. The Devices are available in SOT-223, ESOP-8, DFN2×2-6, DFN3×3-8 and SOT89-3.

• Wide Input Voltage Range: up to 20 V

• Max Output Current: 1 A

• Output Voltage Accuracy: ±2%

• Adjustable Output Voltage Options: VFB = 0.64 V

• Fixed Output Voltage: from 3.3 V, 5 V

• Other Output Voltage Options Available on Request

• Standby Current: 160 µA (Typical)

• Dropout Voltage: 0.5 V at 1A when VOUT ≥ 2 V

• High Ripple Rejection: 80 dB at 1 kHz

• Available Packages: SOT-223, ESOP-8, SOT89-3, DFN2×2-6, DFN3×3-8


• Consumer and Industrial Equipment Point of Regulation

• Switching Power Supply Post Regulation

• Battery Chargers

• Hard Drive Controllers
