描述

The LTP3635 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultralow quiescent current. The ultralow consumption of typical0.4 μA ensures long battery life, and dynamic transient boost feature improves device transient response for wireless communication applications.

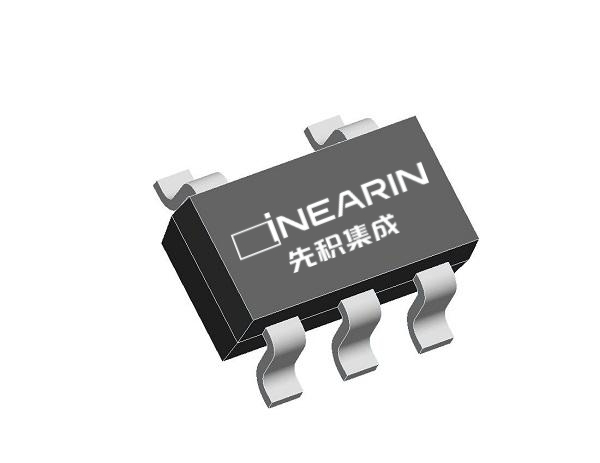

The device is available in SOT23-3L and SOT23-5L packages.


优势和特点

  • Input Voltage Range: 2.0 V to 5.5 V

  • Optional Output Voltages: 1.2 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 3.6 V

  • Ultra-Low Quiescent Current: 0.4 μA Typically

  • Low Dropout: 170 mV Typically at 150 mA and VOUT = 1.8 V

  • High Output Voltage Accuracy ±1.5%n

  • Stable with Ceramic Capacitors 1 μFn

  • Over-Current Protection

  • Thermal Shutdown Protection

  • With auto discharge function at off state


应用

  • Battery Powered Equipments

  • Portable Communication Equipments

  • Cameras, Image Sensors and Camcorders

  • Label Information
