描述

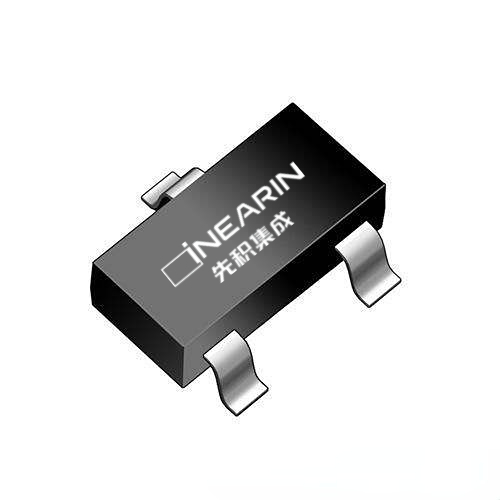

The LTP3636 series of CMOS low dropout regulators are designed specifically for portable batterypowered applications which require ultra-low power consumption. The ultra-low quiescent current of only 0.8μA ensures features of long battery life, and the built-in dynamic transient boost improves the device transient response for wireless communication applications. The LTP3636 series are available in SOT23-3L and SOT23-5L packages.
优势和特点
- 0.8 μA Ultra-Low Quiescent Current
- Output Voltage Range: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, and 3.6V
- Operating Input Voltage Range: 2.0V to 5.5V
- Low Dropout: 170mV Typically at 150mA Load and 1.8V Output
- High Output Voltage Accuracy: ±1.5%
- Stable with 1μF Ceramic Capacitors
- Over-Current Protection
- Thermal Shutdown Protection
- With Auto Discharge Function at Off State
应用
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
